Produkt­beschrei­bung

Die neuesten Wi-Fi 6-Funktionen und fortschrittliche WLAN-Technologie ermöglichen eine höhere Netzwerkeffizienz und geringere Latenzzeiten. Erfüllen Sie die Anforderungen für flüssige Online-Aktivitäten für mehr Geräte zur gleichen Zeit. Die neuesten 802.11ax-Technologien wie 1024 QAM ermöglichen es dem EAP615, die Gesamtgeschwindigkeit von 1775 Mbit/s zu erreichen.

• Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.**
• High-Performance Connectivity: Guarantee higher network efficiency and lower latency.

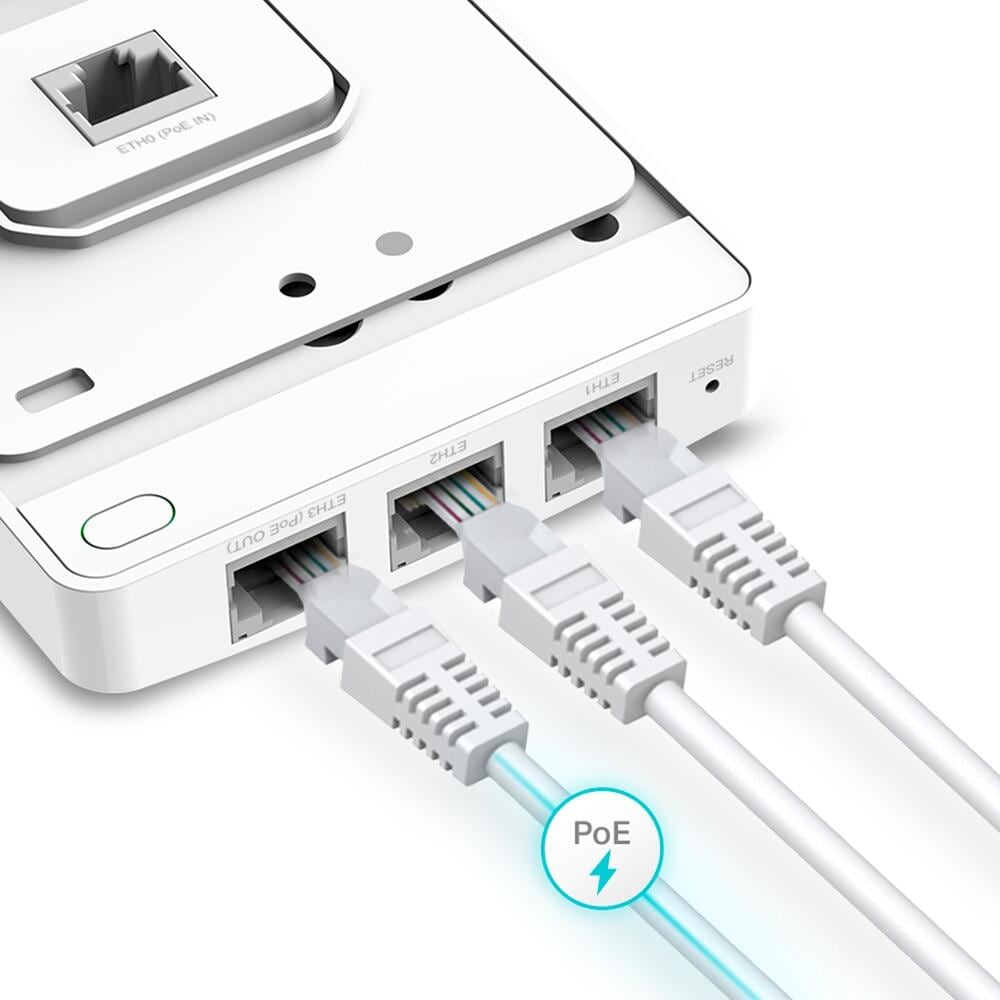

• Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.‡
• Centralized Management: Integrates into Omada SDN for cloud access and remote management.
• Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.†
• Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

Technische Daten:

Hardware Funktionen:

Schnittstelle

• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)

Physischer Diebstahlschutz

• ja

Taste

• Reset

Spannungsversorgung

• 802.3af/at PoE

Energieverbrauch

• EU: 10W (802.3at PoE, PoE Out off)
• US: 11.5W (802.3at PoE, PoE Out off)

Abmessungen (B*T*H)

• 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Antenne

• 2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi

Montage

• Wall Plate Mounting

WLAN-Standards

• IEEE 802.11ax/ac/n/g/b/a

Frequenz

• 2.4 GHz and 5 GHz

Signalrate

• 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps

WLAN-Funktionen

• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Omada Mesh†
• Seamless Roaming(802.11k/v/r)†

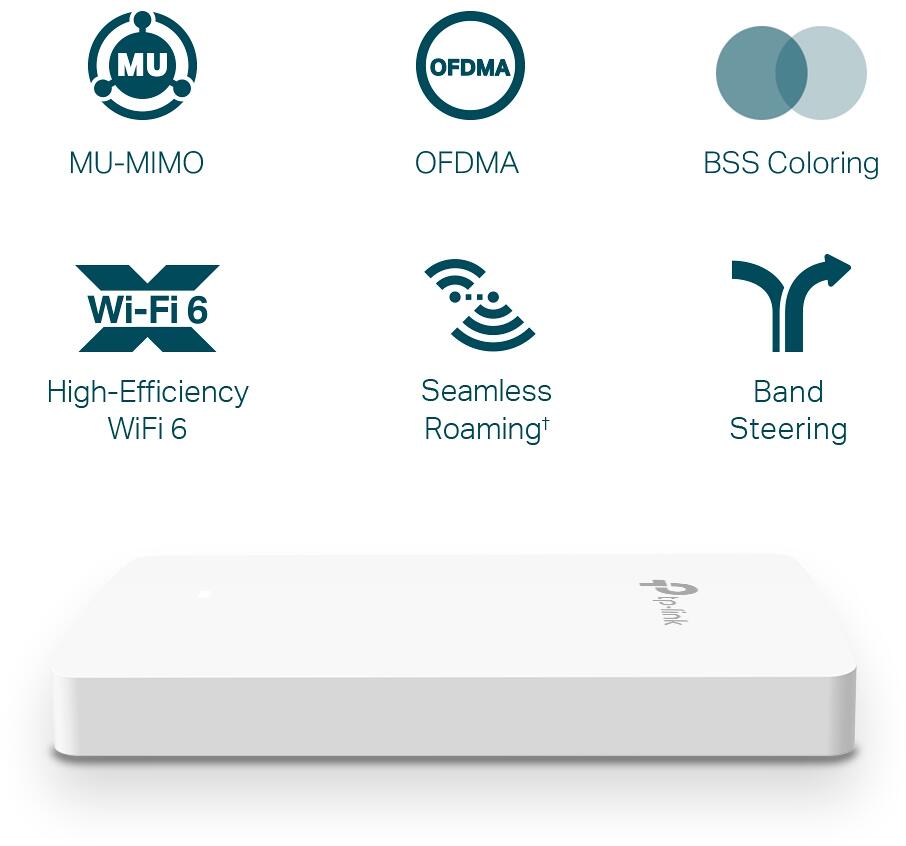

• Beamforming
• MU-MIMO
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP

WLAN-Sicherheit

• Captive Portal Authentication†
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access

• Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Verpackungsinhalt

• EAP615-Wall
• Installation Guide
• Mounting Kit

Systemanforderungen

• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
